Quads

  • 🌰 In a nutshell...

    • A quad is a single flat rectangle placed in the world. Quads
    • Quads are easier to work with than standard ModelInstances for placing + sizing in-world. Placing & Sizing

Quads#

using var quadMesh = factory.MeshBuilder.CreateQuad(); // (1)!
using var poster = factory.ObjectBuilder.CreateQuadInstance( // (2)!
    quadMesh,
    posterMaterial,
    position: new Location(0f, 1.5f, 3f),
    size: new XYPair<float>(1f, 1.4f)
);
scene.Add(poster); // (3)!

poster.Scaling = new XYPair<float>(2f, 2.8f); // (4)!

  1. Creates the underlying mesh: A flat 1m × 1m square. One quad mesh can be used by any number of quad instances.

  2. Creates in instance of the mesh: A 1m × 1.4m rectangle placed at (0, 1.5, 3), facing backward (i.e. towards a camera looking forward).

  3. Like any other object, a quad must be added to a scene to be rendered.

  4. Doubles the quad's size to 2m × 2.8m.

A quad is a single flat rectangle placed in the world. Quads are the natural fit for anything that is flat by nature, such as signs, posters, sprites, decals, and screens. They're also commonly used for performance tricks, such as drawing a distant tree as a flat image rather than a detailed model.

A QuadInstance is a specialized view of a ModelInstance (available via its UnderlyingModelInstance property). You can achieve everything using quads that you could achieve using just a Mesh and a ModelInstance; but quads provide utility members that make it much easier to work with for a flat object (such as a two-dimensional size, a facing direction, custom anchor points, etc). Disposing a quad instance disposes its underlying model instance.

Other details:

  • A quad can be wrapped in a SceneObject.
  • Scene queries return the quad's underlying ModelInstance. QuadInstance.FromPreviouslyAllocatedUnderlyingModelInstance() and QuadMesh.FromPreviouslyAllocatedUnderlyingMesh() wrap an existing model instance or mesh as a quad, without creating anything new. Only use these with an instance or mesh that really was created as a quad.
  • A ResourceGroup lists quads and quad meshes under QuadInstances and QuadMeshes (rather than ModelInstances and Meshes).

Quad Meshes#

Quad meshes are created with factory.MeshBuilder.CreateQuad(), which accepts the following optional parameters:

twoSided

Whether the quad is visible from behind as well as from in front. Defaults to true.

backSideInvertsTextures

Whether the back face of a two-sided quad mirrors its texture. Defaults to false.

By default, a quad seen from behind shows its texture back-to-front (like looking at a window decal from outside). Set this to true to make the quad read the right way round from either side, which is usually what you want for text or images that should be legible from both sides.

textureTransform

An optional Transform2D to scale, rotate, or shift the quad's texture coordinates; e.g. to repeat a texture several times across the quad. See Creating Meshes for more on texture transforms.

name

An optional name for the mesh.

A quad mesh is always a 1m × 1m square centred on its own origin; it's the quad instance that gives it its size, position, and orientation. This means you only ever need one quad mesh per combination of the options above, no matter how many quads you draw or what size they are.

A QuadMesh converts implicitly to a Mesh, so it can be used anywhere a mesh is expected (e.g. to create an ordinary ModelInstance).

Creating Quad Instances#

Quad instances are created with factory.ObjectBuilder.CreateQuadInstance(), which accepts the following parameters:

mesh

The QuadMesh to use.

material

The material to draw the quad with. Quads can use any material.

position

Where to place the quad. Defaults to the origin.

size

The width and height of the quad, in metres. Defaults to (1, 1).

facingDirection

Which way the quad's front face points. Defaults to Direction.Backward, which faces a camera looking in the default (forward) direction.

uprightDirection

Which way is "up" across the quad's face. Defaults to Direction.Up. Must not be parallel to facingDirection.

positionAnchor

Which point of the quad is placed at position. Defaults to Orientation2D.None, meaning the quad's centre. For example, Orientation2D.Down places the middle of the quad's bottom edge at position, which is handy for standing a quad on the ground.

The quad remembers its anchor: from then on, its Position refers to this point (see Placing & Sizing).

name

An optional name for the quad.

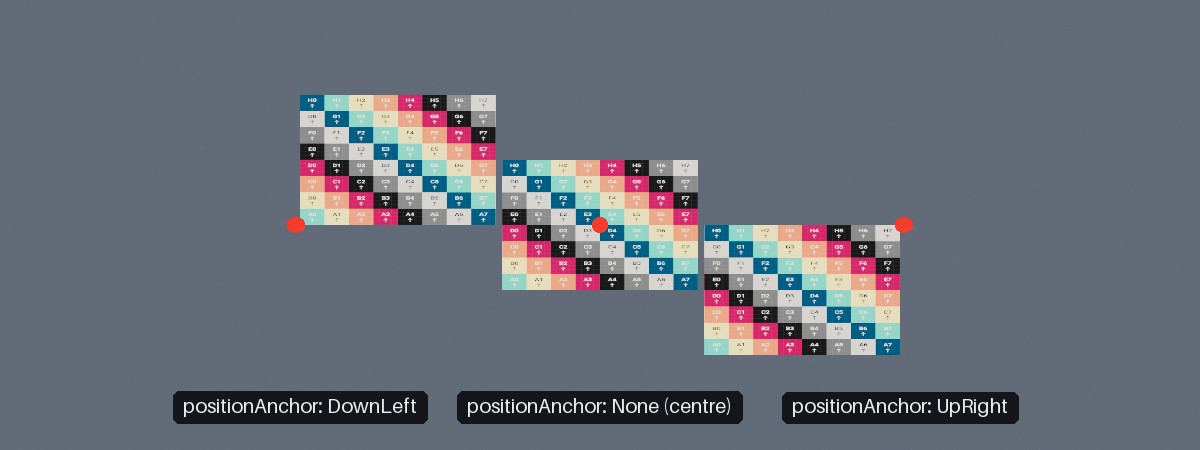

Three quads with different position anchors

Three quads, each placed at one of the red markers with a different positionAnchor.

Alternatively, CreateQuadInstance(mesh, material, config, positionAnchor) takes a ModelInstanceCreationConfig, in which case the quad's initial transform must be specified directly (see Placing & Sizing for how to calculate one). The config's transform always places the quad's centre; the optional positionAnchor only sets which point of the quad its Position refers to.

Placing & Sizing#

quad.Scaling = new XYPair<float>(3f, 2f); // (1)!

quad.SetTransform( // (2)!
    position: new Location(0f, 0.01f, 0f),
    size: new XYPair<float>(2f, 2f),
    facingDirection: Direction.Up,
    uprightDirection: Direction.Forward
);

quad.MoveBy(new Vect(0f, 0f, 1f)); // (3)!
quad.RotateBy(90f % Direction.Up); // (4)!

  1. Resizes the quad to 3m × 2m.

  2. Lays the quad flat on the ground (facing upward), like a decal or a rug.

  3. Moves the quad 1m forward; same API as with ModelInstances.

  4. Turns the quad 90° around the up axis, pivoting around its Position; same API as with ModelInstances.

A quad's Scaling is two-dimensional (an XYPair<float>) because a quad has no depth. As a quad mesh is a 1m × 1m square, a quad's scaling is also its size in metres.

SetTransform(position, size, facingDirection, uprightDirection, positionAnchor) places, orients, and sizes a quad in one call, in the same terms as the creation parameters described above. Quads also have all the usual transform members of an object (Position, Rotation, MoveBy(), RotateBy(), ScaleBy(), etc.; see Scene Objects).

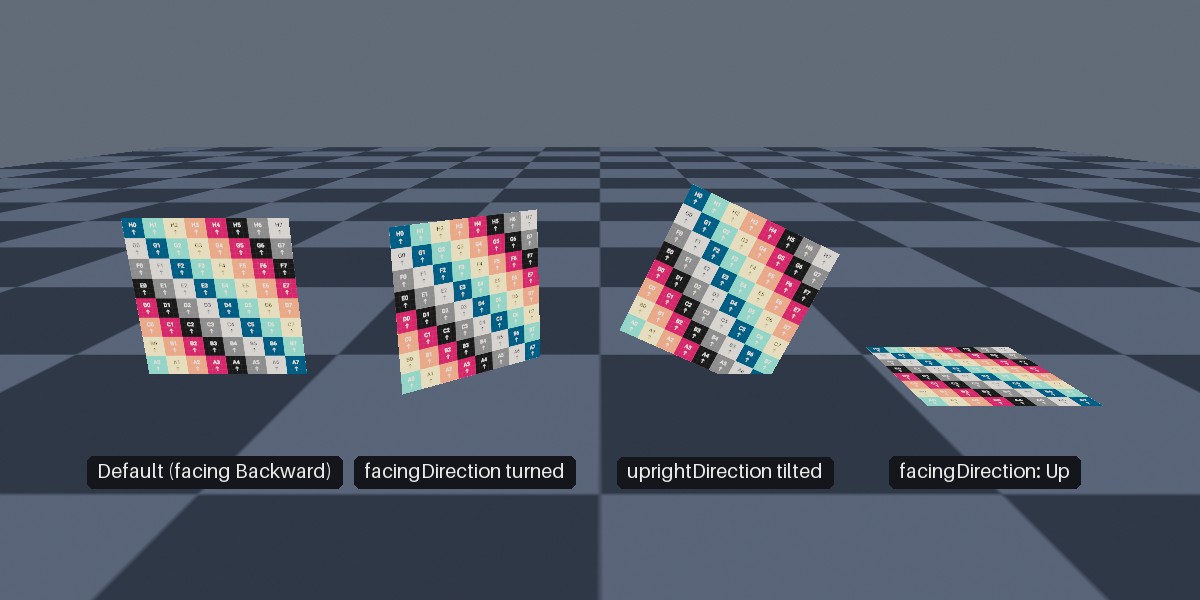

Four quads with different orientations

Quads with their default orientation, a turned facingDirection, a tilted uprightDirection, and facing upward.

Position Anchors

A quad remembers the positionAnchor it was created with (or last placed with via SetTransform()), which can be read back via its PositionAnchor property. A quad's Position refers to that anchor point, and moving, turning, or rescaling the quad keeps the anchor point where it is. For example, a sign anchored at Orientation2D.Down grows upward from its base when scaled up, rather than sinking in to the ground.

(The quad's Transform.Translation, on the other hand, is always its centre.)

If you need the transform for a quad without creating or moving one (e.g. to pass to a ModelInstanceCreationConfig), QuadMesh.CalculateTransformForStandardQuadMesh(position, size, facingDirection, uprightDirection, positionAnchor) performs the same calculation as SetTransform() and returns the resulting Transform. QuadMesh.CalculateAnchorOffsetForStandardQuadMesh(size, positionAnchor) returns just the offset between a quad's centre and a given anchor point (before rotation).

Camera-Locked Quads#

using var icon = factory.ObjectBuilder.CreateCameraLockedQuadInstance(
    quadMesh,
    iconMaterial,
    position: new Location(0f, 2f, 0f)
);

A camera-locked quad (CameraLockedQuadInstance) has its facing direction 'locked' to always face the camera, so it always appears face-on. Camera-locked quads are useful for markers, icons, and particle-like effects, and can optionally keep a constant size on screen however far away they are.

They're explained in full on their own page: Camera-Locked Objects.
