Scene Programmer

Demonstrated Features#

Running It#

Download (or clone) the whole Examples/SceneProgrammer folder, then open a terminal in that folder and run dotnet run -c Release.

Press Import Models... to add some models to the scene (any format listed in Loading Meshes works; .glb files are a good place to start). Then fly the camera to a good starting point, press K to capture a keyframe, and repeat for a few more viewpoints. Finally, press Play Fullscreen.

Action Control
Select an object Left click
Move the selected object along the ground Left drag
Raise or lower the selected object Shift + left drag
Fly the editor camera Hold right mouse button + move mouse, W / A / S / D, Q / E (down / up), Left Shift (faster)
Change fly speed Mouse wheel
Add a camera keyframe at the current view K
Delete the selected object Delete
Exit fullscreen playback Escape

Keyboard controls only reach the 3D view after you've clicked in to it (see Avalonia Integration).

TypeLoadWorkaround.cs (Crash with Exit Code 139)

On Linux, a bug in the .NET 9 and .NET 10 runtimes can make this example crash immediately on startup, before any of its code runs. There's no exception or error message; the process simply exits with a "Segmentation fault" (exit code 139).

The bug (dotnet/runtime#130661) is in how the runtime loads certain struct types, and it's triggered when some of TinyFFR's types (such as model bundles) are used before the types they contain have been loaded. It has been fixed in .NET 11.

Until then, the example works around it with TypeLoadWorkaround.cs, which makes the runtime load TinyFFR's types in a safe order before the program starts (it runs automatically via a module initializer).

Windows and MacOS are not affected.

Architecture#

The application is split in to two halves: the Avalonia side (the window, its panels, and a view model that the panels bind to), and the TinyFFR side (the scene, the cameras, and everything that's rendered). The view model is the only part that talks to both:

flowchart TB
    subgraph avalonia ["Avalonia"]
        direction TB
        window["Main window:<br/>panels & 3D view"]:::env
        viewmodel["View model:<br/>commands & bound properties"]:::step
        window <--> viewmodel
    end
    subgraph tinyffr ["TinyFFR"]
        direction TB
        session["Editor session:<br/>camera, input, picking & dragging"]:::world
        document["Scene document:<br/>imported models"]:::asset
        track["Camera track:<br/>keyframes"]:::step
        scene["Scene"]:::world
        editorRenderer["Bindable renderer<br/>(shown in the 3D view)"]:::render
        player["Fullscreen player:<br/>own window, camera, renderer & loop"]:::render
        session --> document --> scene
        session --> track
        scene --> editorRenderer
        scene --> player
        track --> player
    end
    viewmodel --> session
    editorRenderer --> window

    classDef env fill:#219ebc,fill-opacity:0.3,stroke:#219ebc,stroke-width:2px
    classDef asset fill:#f4a300,fill-opacity:0.3,stroke:#e09400,stroke-width:2px
    classDef world fill:#2a9d5c,fill-opacity:0.3,stroke:#2a9d5c,stroke-width:2px
    classDef render fill:#8e5cc4,fill-opacity:0.3,stroke:#8e5cc4,stroke-width:2px
    classDef step fill:#8a939b,fill-opacity:0.2,stroke:#8a939b,stroke-width:2px

Both the editor's 3D view and the fullscreen player render the same Scene; only the camera and the render target differ.

File What it does
Program.cs / App.axaml Starts Avalonia.
MainWindow.axaml The window's layout: the object list and properties on the left, the 3D view in the middle, and the camera track and environment settings on the right.
MainViewModel.cs Everything the window binds to: the commands behind each button, and the properties behind each field. Owns the EditorSession.
EditorSession.cs The TinyFFR side of the editor: the factory, scene, sun, editor camera, and bindable renderer; plus flying the camera, picking, and dragging.
SceneDocument.cs / SceneObject.cs The imported models, and each object's position, rotation, and scale.
CameraTrack.cs The camera keyframes, and how they're turned in to a programmed camera controller.
EditorOverlay.cs Editor-only scene primitives: the ground grid, the selection box, and the drawn camera track.
EnvironmentSettings.cs The backdrop (including custom HDR/EXR skies), lighting, sun, fog, and ground settings.
RenderSettings.cs The render quality preset and depth of field, applied to both the editor's renderer and the fullscreen player.
FullscreenPlayer.cs Plays the camera track in a separate fullscreen window.
SceneLight.cs One point or spot light, and its editable settings.
LookAtOption.cs One entry in a keyframe's "Look at" list.

One Factory, Two Kinds of Window#

Normally, an application that embeds TinyFFR in a UI framework creates its factory in headless mode, leaving windows and input entirely to the framework. This example needs one window of its own as well (for fullscreen playback), and only one factory can exist at a time, so it creates an ordinary (non-headless) factory instead:

public EditorSession() {
    Factory = new LocalTinyFfrFactory(rendererBuilderConfig: new RendererBuilderConfig { EnableVSync = false });
    Scene = Factory.SceneBuilder.CreateScene();
    Sun = Factory.LightBuilder.CreateDirectionalLight(castsShadows: true, showSunDisc: true);
    Scene.Add(Sun);

    EditorCamera = Factory.CameraBuilder.CreateCamera();
    _flyController = EditorCamera.CreateController<FreeFlyingCameraController>();
    _flyController.Position = new Location(0f, 2f, -6f);
    _flyController.Pitch = Angle.FromDegrees(10f);
    _previewController = EditorCamera.CreateController<ProgrammedCameraController>();
    RecreateRenderer();

    _groundMesh = Factory.MeshBuilder.CreateCuboid(new Cuboid(GroundSize, GroundThickness, GroundSize));
    _groundColorMap = Factory.TextureBuilder.CreateColorMap(new ColorVect(0.4f, 0.4f, 0.4f), includeAlpha: false);
    _groundMaterial = Factory.MaterialBuilder.CreateStandardMaterial(_groundColorMap);
    _ground = Factory.ObjectBuilder.CreateModelInstance(_groundMesh, _groundMaterial, initialPosition: new Location(0f, -GroundThickness * 0.5f, 0f));

    Document = new SceneDocument(Factory, Scene);
    Overlay = new EditorOverlay(Scene);
    Overlay.SetTrack(Track);
    Overlay.SetLights(Document.Lights, null);
    ApplyEnvironment();
}
  • EnableVSync = false lets the fullscreen player render as many frames as the GPU can manage, rather than waiting for the display. It doesn't affect the editor's 3D view, which renders to an off-screen buffer either way.
  • The 3D view shows a bindable renderer (created in RecreateRenderer()), which renders in to a buffer that the TinyFfrSceneView control copies on to the screen (see Avalonia Integration).
  • The ground is a large, thin cuboid with a plain grey material. It's added to or removed from the scene by ApplyEnvironment(), depending on the Environment tab's "Show ground" setting.

The Editor Loop#

Avalonia owns the application's main loop, so the editor doesn't run a while loop of its own. Instead, StartAvaloniaUiLoop() ticks a TinyFFR application loop from Avalonia's dispatcher, passing in the latest input from the 3D view:

void StartUiLoop() {
    if (_inputSource == null) return;
    _uiLoop = _session.Factory.ApplicationLoopBuilder.StartAvaloniaUiLoop(_inputSource, Tick);
}

The Tick callback is given the frame's delta time and the 3D view's input (as an ILatestInputRetriever, just like a native TinyFFR application loop's), and passes them on to the editor session.

Each tick, the editor session flies the camera, handles picking and dragging, and renders a frame for the 3D view:

public void Tick(float deltaTime, ILatestKeyboardAndMouseInputRetriever input) {
    if (IsPreviewing) {
        if (IsPreviewPlaying) _previewController.Progress(deltaTime);
    }
    else {
        UpdateFlyingCamera(deltaTime, input);
        UpdatePickingAndDragging(input);
        if (input.KeyWasPressedThisIteration(KeyboardOrMouseKey.Delete)) DeleteRequested?.Invoke();
        if (input.KeyWasPressedThisIteration(KeyboardOrMouseKey.K)) AddKeyframeRequested?.Invoke();
        Overlay.UpdateSelectionBox();
    }
    _renderer?.Render();
}

There's no way to lock the cursor inside an Avalonia control, so the editor only turns the camera while the right mouse button is held (much like most 3D modelling tools), using a free-flying camera controller:

void UpdateFlyingCamera(float deltaTime, ILatestKeyboardAndMouseInputRetriever input) {
    if (input.KeyIsCurrentlyDown(KeyboardOrMouseKey.MouseRight)) {
        _flyController.AdjustYawViaMouseCursor(input, LookSensitivityPerPixel);
        _flyController.AdjustPitchViaMouseCursor(input, LookSensitivityPerPixel);

        var speed = input.KeyIsCurrentlyDown(KeyboardOrMouseKey.LeftShift) ? FlySpeed * 3f : FlySpeed;
        _flyController.AdjustPositionViaKeyPress(input, deltaTime, KeyboardOrMouseKey.W, Orientation.Forward, speed);
        _flyController.AdjustPositionViaKeyPress(input, deltaTime, KeyboardOrMouseKey.S, Orientation.Backward, speed);
        _flyController.AdjustPositionViaKeyPress(input, deltaTime, KeyboardOrMouseKey.A, Orientation.Left, speed);
        _flyController.AdjustPositionViaKeyPress(input, deltaTime, KeyboardOrMouseKey.D, Orientation.Right, speed);
        _flyController.AdjustPositionViaKeyPress(input, deltaTime, KeyboardOrMouseKey.E, Orientation.Up, speed);
        _flyController.AdjustPositionViaKeyPress(input, deltaTime, KeyboardOrMouseKey.Q, Orientation.Down, speed);
    }

    if (input.MouseScrollWheelDelta != 0) {
        FlySpeed = Math.Clamp(FlySpeed * MathF.Pow(1.25f, -input.MouseScrollWheelDelta), MinFlySpeed, MaxFlySpeed);
    }
    _flyController.Progress(deltaTime);
}

Importing Models#

Models are imported with LoadBundledAssetAsync() (see Asynchronous Loading), so that the editor keeps rendering and responding while large files load. Because the factory was created on Avalonia's UI thread, each await resumes there, so the rest of the method can safely use TinyFFR and update the UI:

public async Task<SceneObject> ImportAsync(string filePath, Location groundPoint) {
    if (!_bundlesByPath.TryGetValue(filePath, out var bundle)) {
        bundle = await _factory.AssetLoader.LoadBundledAssetAsync(filePath);
        _bundlesByPath[filePath] = bundle;
    }

    var sceneObject = CreateObject(Path.GetFileNameWithoutExtension(filePath), bundle);
    var boundingBox = bundle.CalculateCombinedBoundingBox();
    var largestDimension = MathF.Max(boundingBox.Width, MathF.Max(boundingBox.Height, boundingBox.Depth));
    var scale = largestDimension is > 0.1f and < 25f ? 1f : ImportedModelTargetSize / largestDimension;
    var bottom = boundingBox.Position.Y - boundingBox.HalfHeight;
    sceneObject.Scale = Math.Round((decimal) scale, 4);
    sceneObject.Position = new Location(groundPoint.X, groundPoint.Y - bottom * scale, groundPoint.Z);
    return sceneObject;
}
  • Importing the same file twice re-uses the already-loaded model bundle; only a new group of model instances is created from it (see CreateObject() in SceneDocument.cs).
  • The bundle's CalculateCombinedBoundingBox() gives the size of the whole model (see Bounding Boxes), which is used to scale models that are unreasonably large or small, and to stand the model on the ground.

Selecting & Dragging#

Clicking in the 3D view uses pixel picking to find which model instance is under the cursor, and the scene document maps that instance back to the object it belongs to. Dragging then moves the object across a horizontal plane at the height where it was grabbed, using a ray cast from the cursor:

void UpdatePickingAndDragging(ILatestKeyboardAndMouseInputRetriever input) {
    if (input.KeyWasPressedThisIteration(KeyboardOrMouseKey.MouseLeft)) {
        var pick = EditorRenderer.PickModelInstanceFromRenderSurface(input.MouseCursorPosition);
        var picked = pick is { } p ? Document.FindOwner(p.ModelInstance) : null;
        Selection = picked;
        SelectionPicked?.Invoke(picked);
        if (picked != null && pick is { } hit) {
            _isDragging = true;
            _dragPlaneHeight = hit.Position.Y;
            _dragOffset = picked.Position.AsVect() - hit.Position.AsVect();
        }
        return;
    }

    if (!_isDragging || _selection == null) return;
    if (!input.KeyIsCurrentlyDown(KeyboardOrMouseKey.MouseLeft)) {
        _isDragging = false;
        return;
    }
    if (input.MouseCursorDelta == XYPair<int>.Zero) return;

    if (input.KeyIsCurrentlyDown(KeyboardOrMouseKey.LeftShift)) {
        var distance = EditorCamera.Position.DistanceFrom(_selection.Position);
        var rise = -input.MouseCursorDelta.Y * distance * 0.0025f;
        _dragPlaneHeight += rise;
        _selection.Position += new Vect(0f, rise, 0f);
        return;
    }

    var ray = EditorRenderer.CreateRayFromRenderSurface(input.MouseCursorPosition);
    if (ray.IntersectionWith(new Plane(Direction.Up, new Location(0f, _dragPlaneHeight, 0f))) is not { } groundHit) return;
    if (groundHit.DistanceFrom(EditorCamera.Position) > 500f) return;
    var target = groundHit + _dragOffset;
    _selection.Position = new Location(target.X, _selection.Position.Y, target.Z);
}
  • PickModelInstanceFromRenderSurface() returns both the ModelInstance under the cursor and the Position on its surface that was clicked. Pixel picking is exact (it uses the rendered image, not bounding boxes), so clicking through a gap in a model selects whatever is behind it.
  • CreateRayFromRenderSurface() turns the cursor position in to a ray from the camera out in to the scene, and IntersectionWith() finds where it crosses the drag plane (see Shapes).
  • Both take the cursor position exactly as the 3D view's input reports it (see Avalonia Integration).

Editor Overlay#

The ground grid, the selection box, and the camera track are all drawn with scene primitives. The track is redrawn whenever a keyframe changes: a line between each pair of keyframes (a curve when the keyframe has a pivot), an arrow showing where the camera faces (pink when it's looking at something), the keyframe's number, and markers for any pivots and look-at points:

public void RebuildPath() {
    ClearPath();
    if (!_isVisible || _track == null) return;

    var keyframes = _track.Keyframes;
    for (var i = 0; i < keyframes.Count; ++i) {
        var keyframe = keyframes[i];
        if (i > 0) AddPathSegment(keyframes[i - 1].Position, keyframe);
        var lookAt = keyframe.LookAtLocation;
        _pathPrimitives.Add(_scene.AddPrimitiveArrow(keyframe.Position, keyframe.GetViewDirection(), lookAt != null ? LookBrush : PathBrush, ScenePrimitiveSize.Medium));
        _pathPrimitives.Add(_scene.AddPrimitiveString(keyframe.Position + new Vect(0f, 0.25f, 0f), keyframe.Number.ToString(), PathBrush));
        if (keyframe.LookAt == LookAtOption.Point && lookAt is { } lookAtPoint) {
            _pathPrimitives.Add(_scene.AddPrimitivePoint(lookAtPoint, LookBrush, ScenePrimitiveSize.Medium));
            _pathPrimitives.Add(_scene.AddPrimitiveShape(new BoundedRay(keyframe.Position, lookAtPoint), LookBrush, ScenePrimitiveSize.VerySmall, includeEndpoints: false));
        }
    }
}
  • Each Add[...] method returns a ScenePrimitive; disposing it removes it from the scene again, which is how the old path is cleared before it's redrawn.
  • Primitives are part of the scene, so they'd also appear in the fullscreen player and in the preview. The overlay therefore removes them all while either is running, and adds them back afterwards (SetVisible()).

Building the Camera Track#

Each keyframe stores a camera position, view and up directions, and field of view, captured from the editor camera; plus how long the camera should take to reach it, the easing to use on the way, and optionally:

  • Something to look at: either an object, or a point. To set a point, fly the editor camera to the spot the keyframe should look at and press Look at Camera Position.
  • A pivot: a point the camera sweeps around in an arc on its way to the keyframe, rather than travelling in a straight line. It's set the same way, with Pivot at Camera Position.

Both can be removed again with their Clear buttons.

A programmed camera controller can only have keyframes appended to it, so whenever the track is played or previewed, it's rebuilt from scratch:

public void ApplyTo(ProgrammedCameraController controller) {
    controller.ResetParametersToDefault();
    if (Keyframes.Count == 0) return;

    var camera = controller.Camera;
    var start = Keyframes[0];
    camera.Position = start.Position;
    camera.SetViewAndUpDirection(start.GetViewDirection(), start.UpDirection);
    camera.SetVerticalFieldOfView(Angle.FromDegrees((float) start.FieldOfViewDegrees));

    for (var i = 1; i < Keyframes.Count; ++i) {
        var keyframe = Keyframes[i];
        var length = (float) keyframe.DurationSeconds;
        controller.AddPositionKeyframe(keyframe.PivotPoint is { } pivot
            ? new(length, GetAlgorithm<Location>(keyframe.Easing), keyframe.Position, pivot)
            : new(length, GetAlgorithm<Location>(keyframe.Easing), keyframe.Position)
        );
        controller.AddOrientationKeyframe(keyframe.LookAtLocation is { } target
            ? new(length, GetAlgorithm<Direction>(keyframe.Easing), target, keyframe.UpDirection)
            : new(length, GetAlgorithm<Direction>(keyframe.Easing), keyframe.ViewDirection, keyframe.UpDirection)
        );
        controller.AddFieldOfViewKeyframe(new(length, GetAlgorithm<Angle>(keyframe.Easing), Angle.FromDegrees((float) keyframe.FieldOfViewDegrees)));
    }

    controller.PositionTrackWrapping = Wrapping;
    controller.OrientationTrackWrapping = Wrapping;
    controller.FieldOfViewTrackWrapping = Wrapping;
    controller.Progress(0f);
}
  • The first keyframe is the camera's starting pose; it isn't added to the controller at all. Instead, the camera is moved there before the first Progress() call, because the controller captures the camera's current position, orientation, and field of view as its starting values when its timestamp is zero.
  • Every later keyframe adds one position, one orientation, and one field-of-view keyframe, all the same length, so the three tracks stay in step.
  • When a keyframe looks at an object or a point, its orientation keyframe uses that location (an object's centre) as a look-at target instead of a fixed direction. The camera then keeps facing it even while moving past it.
  • When a keyframe has a pivot, its position keyframe is created with that Pivot. The camera then turns around the pivot along the shortest arc (so one keyframe can sweep at most 180°), while its distance from the pivot changes gradually from the starting distance to the ending one.
  • Each easing style maps on to one of the built-in interpolation algorithms.

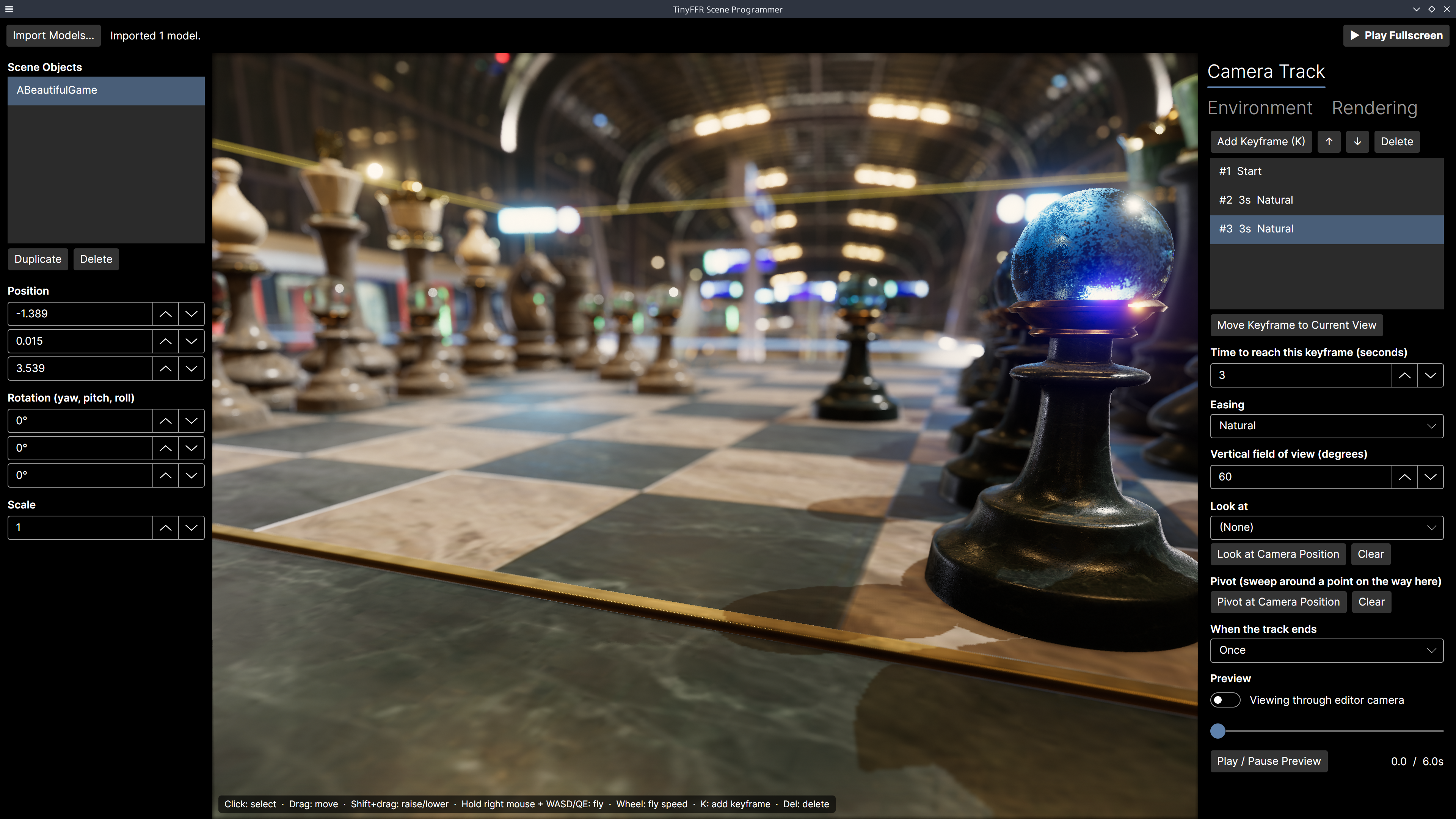

Previewing in the Editor#

The preview doesn't need its own renderer: a camera can have more than one controller attached, and each one only moves the camera when it's progressed. So the preview attaches a programmed camera controller to the editor camera, and simply stops progressing the free-flying one while it's active:

public void EnterPreview(float timeSeconds) {
    if (!IsPreviewing) _editorFieldOfView = EditorCamera.VerticalFieldOfView;
    IsPreviewing = true;
    IsPreviewPlaying = false;
    Overlay.SetVisible(false);
    SeekPreview(timeSeconds);
}

public void ExitPreview() {
    if (IsPreviewing) EditorCamera.SetVerticalFieldOfView(_editorFieldOfView);
    IsPreviewing = false;
    IsPreviewPlaying = false;
    Overlay.SetVisible(true);
}

public void SeekPreview(float timeSeconds) {
    Track.ApplyTo(_previewController);
    _previewController.CurrentTimestampSeconds = timeSeconds;
    _previewController.Progress(0f);
}
  • Scrubbing rebuilds the track and then jumps straight to the chosen time with CurrentTimestampSeconds.
  • When the preview ends, the free-flying controller's next Progress() call puts the camera back where it was; only the field of view needs restoring by hand, because the free-flying controller doesn't control it.

Fullscreen Playback#

Pressing Play Fullscreen creates a fullscreen TinyFFR window with its own camera, renderer, and application loop, and runs a plain while loop until the track ends or the user presses Escape:

public static PlaybackSummary Play(EditorSession session) {
    var factory = session.Factory;
    var display = factory.DisplayDiscoverer.Primary ?? throw new InvalidOperationException("No display connected.");

    using var window = factory.WindowBuilder.CreateWindow(display, WindowFullscreenStyle.FullscreenBorderless, title: "Scene Programmer");
    using var camera = factory.CameraBuilder.CreateCamera();
    using var controller = camera.CreateController<ProgrammedCameraController>();
    using var renderer = factory.RendererBuilder.CreateRenderer(session.Scene, camera, window);
    using var loop = factory.ApplicationLoopBuilder.CreateLoop(new LocalApplicationLoopCreationConfig {
        FrameRateCapHz = null,
        IterationShouldPumpSystemEventQueue = true
    });

    window.LockCursor = true;
    camera.Exposure = session.Environment.Exposure;
    session.Rendering.ApplyTo(renderer, camera);
    session.Track.ApplyTo(controller);

    var endTime = session.Track.PlaybackLengthSeconds + HoldOnFinalFrameSeconds;
    var elapsed = 0f;
    var frameCount = 0;
    while (true) {
        var deltaTime = loop.IterateOnce().AsDeltaTime();
        var input = loop.Input;
        if (input.UserQuitRequested || input.KeyboardAndMouse.KeyWasPressedThisIteration(KeyboardOrMouseKey.Escape) || elapsed >= endTime) break;

        elapsed += deltaTime;
        controller.Progress(deltaTime);
        renderer.Render();
        ++frameCount;
    }

    return new PlaybackSummary(elapsed, frameCount);
}
  • This loop blocks Avalonia's UI thread, so the editor is frozen while it runs. That's deliberate: nothing else needs to happen while the track plays, and it means every bit of the CPU and GPU goes towards the fullscreen window.
  • The loop sets IterationShouldPumpSystemEventQueue = true, because the editor's own loop doesn't read the operating system's event queue (Avalonia does that), but this window's input and close events only arrive if someone does (see Application Loops).
  • Window, camera, renderer, and loop are all disposed when the method returns, so playback can be started again as many times as you like.

Before playing, the view model stops the editor's loop, unbinds and disposes the editor's renderer, and hides the overlay; and afterwards puts everything back:

void PlayFullscreen() {
    if (!CanPlay) return;
    IsPreviewing = false;
    _uiLoop?.Dispose();
    _uiLoop = null;
    ActiveRenderer = null;
    _session.ReleaseRenderer();
    _session.Overlay.SetVisible(false);
    try {
        var summary = FullscreenPlayer.Play(_session);
        StatusText = $"Played {summary.DurationSeconds:N1}s at an average of {summary.AverageFramesPerSecond:N0} FPS.";
    }
    catch (Exception e) {
        StatusText = $"Playback failed: {e.GetBaseException().Message}";
    }
    finally {
        _session.Overlay.SetVisible(true);
        ActiveRenderer = _session.RecreateRenderer();
        StartUiLoop();
    }
}

Releasing the editor's renderer frees its GPU memory (render targets at the size of the 3D view) for the fullscreen window's 4K-sized ones. In testing, with the chess set from Loading Assets and two helmets in the scene, the application used around 1.6 GB of VRAM while editing and around 2.2 GB during 3840 × 2160 fullscreen playback, which ran at around 380 to 420 frames per second.

Environment#

The Environment tab sets the scene's backdrop, the sun's direction and brightness (see Directional Lights), and whether there's a ground to stand things on. Choosing a lighting preset sets the backdrop brightness, the sun's brightness, and the camera's exposure together, so that the scene is always correctly exposed:

public void ApplyTo(Scene scene, DirectionalLight sun) {
    switch (Backdrop) {
        case BackdropStyle.Clouds:
            scene.SetBackdrop(BuiltInSceneBackdrop.Clouds, BackdropBrightness);
            break;
        case BackdropStyle.Starfield:
            scene.SetBackdrop(BuiltInSceneBackdrop.Starfield, BackdropBrightness);
            break;
        case BackdropStyle.SkyColor:
            scene.SetBackdrop(SkyColor, BackdropBrightness);
            break;
        case BackdropStyle.CustomHdr when CustomBackdrop is { } custom:
            if (UseBackdropBrightnessSlider) {
                var lux = GetMatchingBackdropBrightness(Lighting).ToLux() * BackdropBrightnessPercent / 100f;
                scene.SetBackdrop(custom, custom.LuxToIntensity(lux));
            }
            else {
                scene.SetBackdrop(custom, BackdropBrightness);
            }
            break;
        default:
            scene.RemoveBackdrop();
            break;
    }

    if (Fog is { } fog) scene.AddFog(fog);
    else scene.RemoveFog();

    sun.SetBrightness(SunBrightness.ToBrightnessValue() * SunBrightnessMultiplier);
    sun.Color = SunColor;
    sun.Direction = SunDirection;
    sun.CastsShadows = SunCastsShadows;
}

The sun's brightness can also be scaled (relative to the lighting preset's brightness, so 1× stays correctly exposed) and tinted with a colour picker; as with every other light colour, the picked sRGB colour is converted to a linear one for the light. The ground grid is part of the editor overlay, so it can be hidden with "Show grid" without affecting the preview or fullscreen playback (where it's never shown anyway).

The fullscreen player's camera copies the same exposure when it's created.

Backdrop Brightness#

Choosing a lighting preset also sets the backdrop brightness to match, but the "Backdrop brightness" setting can then be changed independently, to any SceneBackdropBrightnessPreset (for example, a darker sky over a brightly-lit scene).

For a custom HDR/EXR backdrop, the brightness can also be set with a slider. The slider scales the backdrop relative to the lighting preset's brightness (so 100% is correctly exposed), using the backdrop's MeasuredLux to convert a brightness in lux to the intensity value that SetBackdrop() expects (via LuxToIntensity()). TinyFFR doesn't expose the measured brightness of its built-in backdrops or of colour backdrops, so for those, only the presets are available.

Custom HDR/EXR Backdrops#

Load HDR/EXR... converts a high-dynamic-range image in to a backdrop texture with factory.AssetLoader.LoadBackdropTextureAsync(filePath, HdrQuality), at the resolution chosen next to the button. When the conversion finishes, the new backdrop replaces any previous one:

public void SetCustomBackdrop(BackdropTexture backdrop) {
    var previous = Environment.CustomBackdrop;
    Environment.CustomBackdrop = backdrop;
    Environment.Backdrop = BackdropStyle.CustomHdr;
    ApplyEnvironment();
    previous?.Dispose();
}
  • Converting an HDR image is slow (it can take minutes at the highest resolutions), so it's done asynchronously: the editor keeps rendering while the conversion runs in the background. In testing, a 4K HDR image converted in under two seconds at Quality.Low.
  • The old backdrop texture is only disposed after the scene has switched to the new one, because a backdrop texture can't be disposed while a scene is still using it.
  • In a real application, you'd convert backdrops ahead of time instead (by preprocessing or baking them; see Backdrop Textures), so they load in moments.

Fog#

The fog panel edits every property of a FogDescriptor. Apply Preset fills the panel in from one of the FogDensity presets (using new FogDescriptor(preset)), which is a good starting point for adjusting from. The panel's values are turned back in to a descriptor whenever one of them changes:

FogDescriptor CreateFogDescriptor() {
    var linear = ColorVect.SrgbToLinear(new ColorVect(FogColor.R / 255f, FogColor.G / 255f, FogColor.B / 255f));
    return new FogDescriptor {
        Color = new ColorVect(linear.Red, linear.Green, linear.Blue, (float) FogOpacity),
        DensityMultiplier = (float) FogDensityMultiplier,
        StartDistance = (float) FogStartDistance,
        GroundLayerHeight = (float) FogGroundLayerHeight,
        SkywardDensityFalloffMultiplier = (float) FogSkywardFalloff,
        DirectionalLightScatteringStrengthMultiplier = (float) FogSunScattering,
        OccludesBackdrop = FogOccludesBackdrop
    };
}

Fog colours are linear (like every lighting colour in TinyFFR; see Colour), but the colour picker works in the sRGB colours you'd see in an image editor. So the colour is converted with ColorVect.SrgbToLinear() on its way in to the descriptor, and with ColorVect.LinearToSrgb() when a preset's colour is shown in the picker. The picker's alpha channel is turned off; the fog's opacity has its own slider instead, which goes in to the colour's alpha.

The fog is part of the scene, so the fullscreen player shows it too.

Lights#

The Lights tab adds point lights and spot lights to the scene. A new light is placed at the editor camera's position (and a new spot light points wherever the camera is looking), so the easiest way to place one is to fly to where it should be first. Each light is wrapped in a SceneLight, which applies its settings to the underlying light whenever one of them changes:

void Apply() {
    var multiplier = (float) Math.Max(BrightnessMultiplier, 0d);
    var range = Math.Max((float) Range, 0.1f);
    if (_pointLight is { } pointLight) {
        pointLight.Position = Position;
        pointLight.Color = LinearColor;
        pointLight.Brightness = PointBrightnessPreset.ToBrightnessValue() * multiplier;
        pointLight.CastsShadows = CastsShadows;
        pointLight.MaxIlluminationRadius = range;
    }
    if (_spotLight is { } spotLight) {
        spotLight.Position = Position;
        spotLight.Color = LinearColor;
        spotLight.Brightness = SpotBrightnessPreset.ToBrightnessValue() * multiplier;
        spotLight.CastsShadows = CastsShadows;
        spotLight.MaxIlluminationDistance = range;
        spotLight.ConeAngle = Angle.FromDegrees((float) ConeAngleDegrees);
        spotLight.IntenseBeamAngle = Angle.FromDegrees((float) Math.Min(IntenseBeamAngleDegrees, ConeAngleDegrees));
    }
}
  • Brightness is chosen as one of the built-in brightness presets (such as BulbTypical or DeskLamp), times a multiplier.
  • As with the fog colour, the colour picker's sRGB colour is converted to a linear one for the light.
  • A spot light can be aimed along the camera's view, or at the selected object. The light's own position and direction are shown in the editor with scene primitives (in the light's colour), and the selected light is outlined.
  • Lights use real-world brightness, so a household bulb hardly shows up at all under the Midday lighting preset, just as it wouldn't outdoors on a sunny day (see Exposure & Brightness). They're most effective with the Twilight or Indoors presets.

Rendering#

The Rendering tab sets the render quality preset and the camera's depth of field. Both apply to the editor's view and to fullscreen playback, so what you see while editing is what you'll get:

public void ApplyTo(Renderer renderer, Camera camera) {
    renderer.SetQuality(new RenderQualityConfig(Quality) { DepthOfFieldStrength = DepthOfFieldStrength });
    camera.FocusDistance = DepthOfFieldEnabled ? FocusDistance : null;
}
  • A camera's FocusDistance is null when depth of field is off; setting it to a distance in metres turns the effect on. Focus on Selected Object sets it to the selected object's current distance from the editor camera.
  • The blur strength is the quality config's DepthOfFieldStrength. (The camera's aperture also affects the blur, but the aperture is set by the lighting preset's exposure.)
  • The focus distance stays the same for the whole camera track. In testing, depth of field, thick fog, and the VeryHigh preset together brought fullscreen playback down from around 345 to around 210 frames per second at 3840 × 2160; depth of field is the most expensive effect in TinyFFR.

Avoiding Garbage#

Avalonia (like most UI frameworks) allocates memory as it runs, so the editor doesn't try to avoid generating garbage. The fullscreen player's loop, however, allocates nothing at all: in testing, three runs of around 2,500 frames each allocated zero bytes after the first second. Combined with the uncapped framerate, this keeps playback as smooth as possible (see Avoiding GC Stutter).

Comments
